Reed Thread Roller Pair

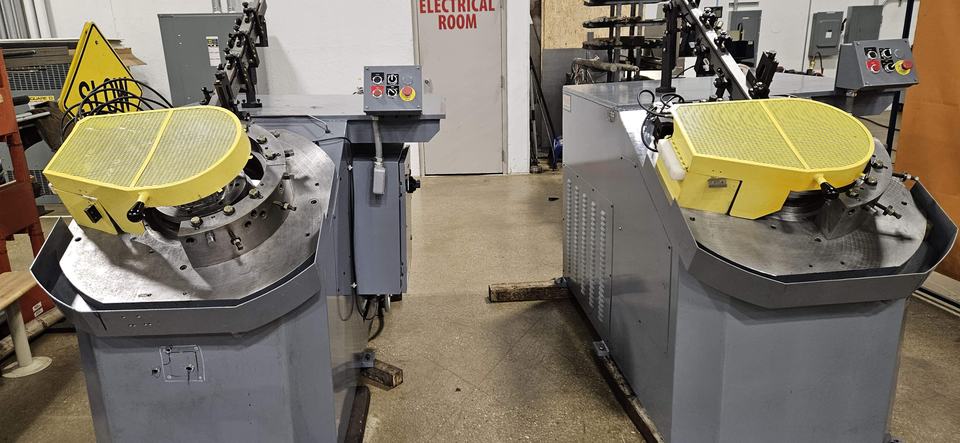

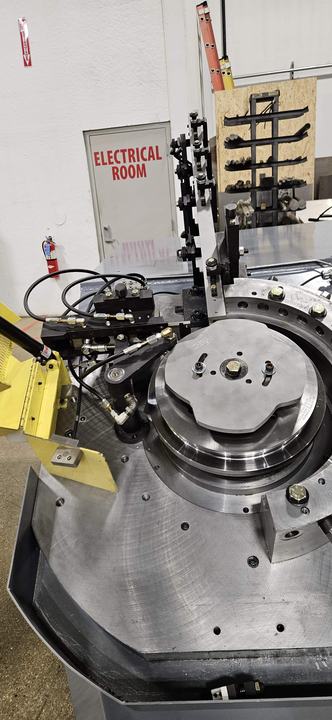

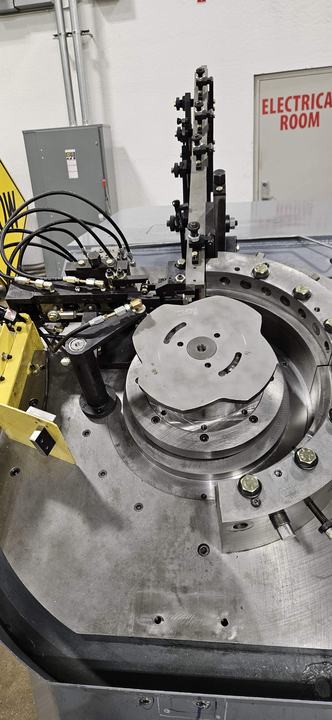

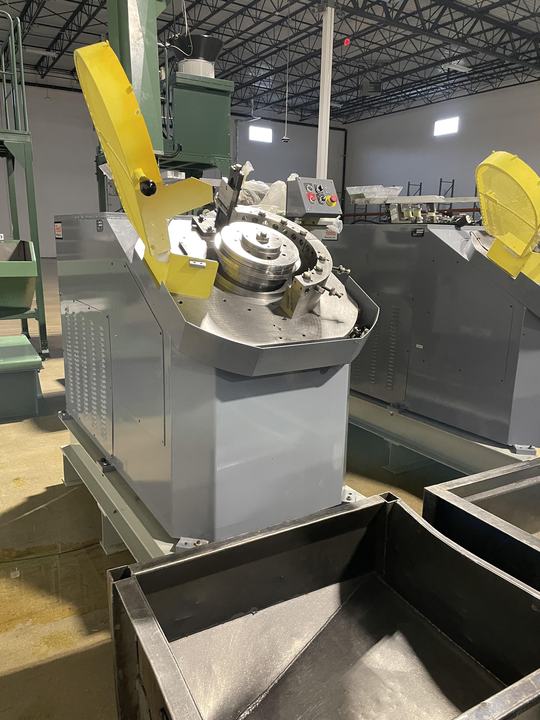

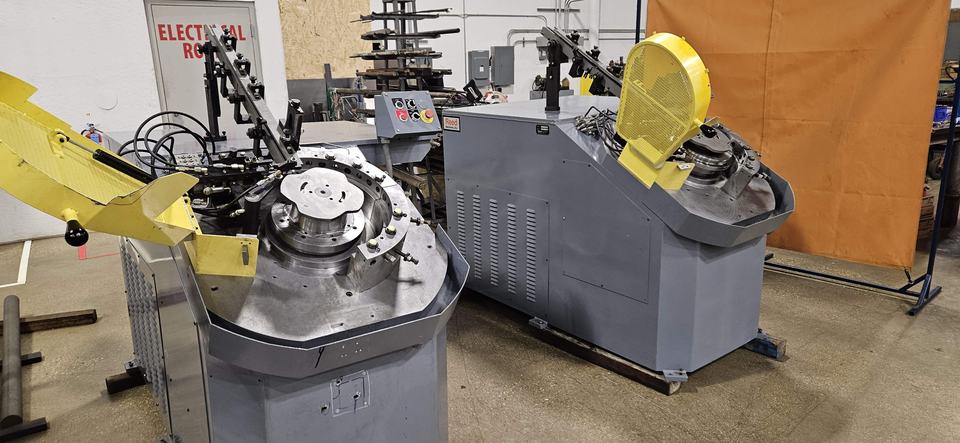

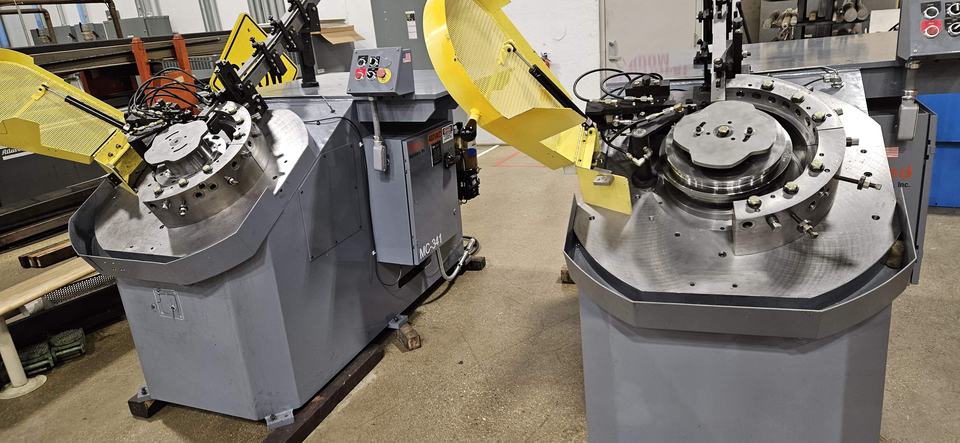

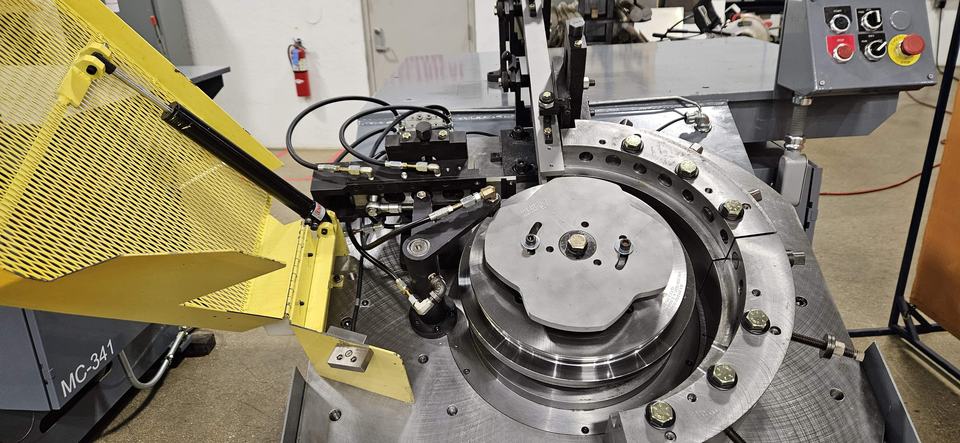

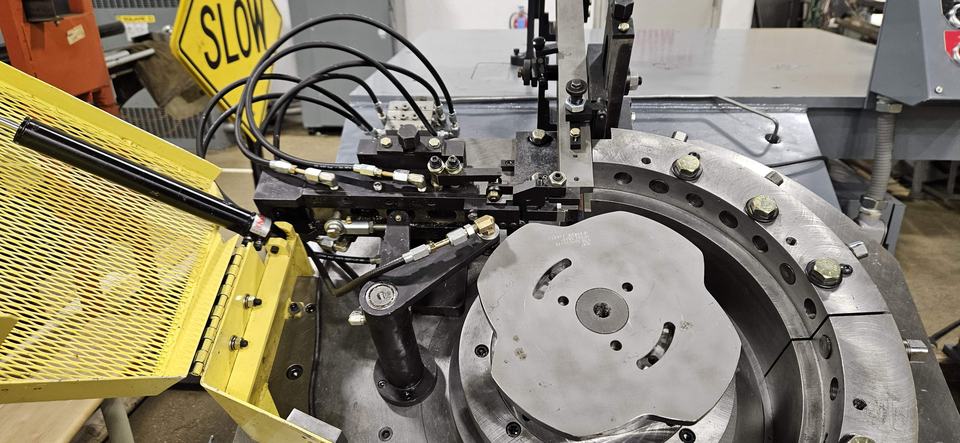

Reed Thread Roller Pair Reed 300B Planetary MC-340 Reed Thread Roller Top 3 Reed Thread Roller Top 4 Reed Thread Roller Front Reed Thread Roller Side 1 Reed Thread Roller Side 2 Reed Thread Roller Top 1 Reed Thread Roller Top 2

Specifications

  • Min. Thread Diameter 5/16"
  • Max. Thread Diameter 3/4"
  • Rotary Die Diameter 12"
  • Die Width 2"
  • Die Speed 35 RPM
  • Cam Speed 300 ppm
  • Loading Height 68"
  • Floor Space (LxW) 78" x 60"
  • Weight 4300 lbs.

Description

Reed 300 B Planetary Thread Roller. Limited use, low hours, virtually in new condition.
