Dong Il
Model DCF-400 to DCF-1200
Dong Il counter-flow rolling machines for splined parts and gear-type shafts, with rolled diameters from 20 to 50 mm. Options include two-way rolling and an auto-loader. Supplied by Cinco Industries.
Six DCF models cover rolled diameters from 20 to 50 mm and spline modules up to 1.75.
| Model | Rolled diameter (mm) | Spline max. module | Max length of dies (mm) | Max width of die holders (mm) | Weight (ton) |
|---|---|---|---|---|---|
| DCF-400 | 20 | 1.0 | 410 | 105 | 3.5 |
| DCF-600 | 30 | 1.5 | 623.8 | 150 | 7.0 |
| DCF-750 | 37 | 1.5 | 715.2 | 150 | 8.5 |
| DCF-1000 | 45 | 1.5 | 928.3 | 250 | 9.5 |
| DCF-1100 | 50 | 1.5 | 1,050 | 250 | 11 |
| DCF-1200 | 50 | 1.75 | 1,220 | 250 | 12 |
Figures from Dong Il product data. Confirm the model for your part with Cinco before ordering.
The six models step up with the size of the part. Rolled diameter runs from 20 mm on the DCF-400 to 30 mm on the DCF-600, 37 mm on the DCF-750, 45 mm on the DCF-1000, and 50 mm on both the DCF-1100 and DCF-1200. Spline maximum module is 1.0 on the DCF-400, 1.5 on the DCF-600 through DCF-1100, and 1.75 on the DCF-1200.
Maximum die length grows from 410 mm to 1,220 mm and machine weight from 3.5 to 12 tons, so check the space and floor loading for the model you are considering.

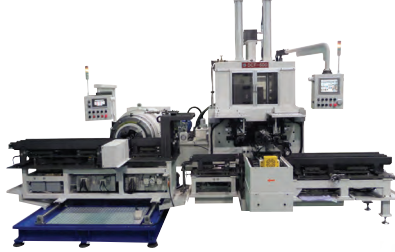

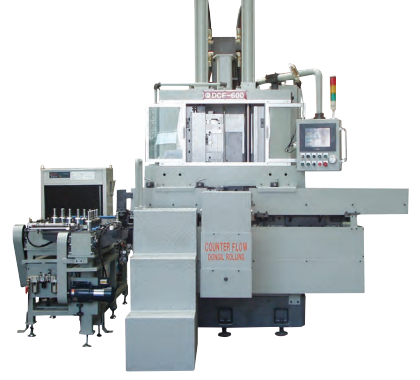

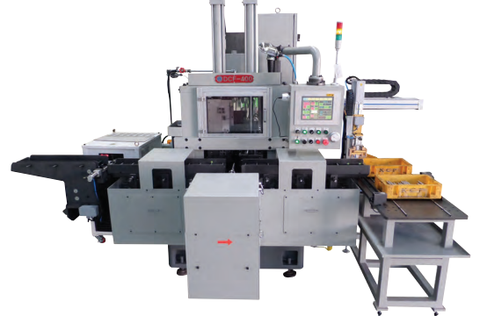

Dong Il counter-flow rolling machines and DCF-Auto lines.

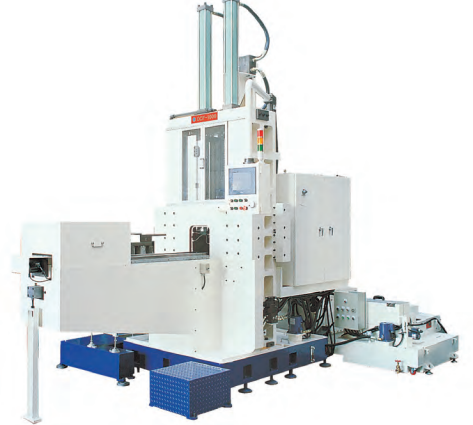

Every DCF model lists three options: two-way rolling, an auto-loader and parallel simultaneous rolling. On the E-type, two-way rolling moves the work with a servo motor. Dong Il also builds DCF-Auto lines. Typical work includes splined and gear-type shafts and joint parts.
Cinco supplies dies and tooling for these machines. Machines are built to order, and lead time depends on the machine and configuration.
Looking at other Dong Il machines? See all Dong Il thread rolling machines.
Every DCF model lists three options: two-way rolling, an auto-loader and parallel simultaneous rolling. On the E-type, two-way rolling moves the work with a servo motor.
Dong Il shows splined and gear-type shafts and joint parts.
Yes. Cinco supplies dies and tooling for Dong Il machines. Include your tooling needs when you request a quote.
Machines are built to order. Lead time depends on the machine and configuration, and we quote it with your application.
Tell us the part diameter, spline module and length, material and volume, and we will help you choose a DCF model.
