Dong Il Thread Rolling Machines

Dong Il thread rolling machines for fastener and precision-part production: 2-die, 3-die and counter-flow rollers, supplied by Cinco Industries.

Request a quote

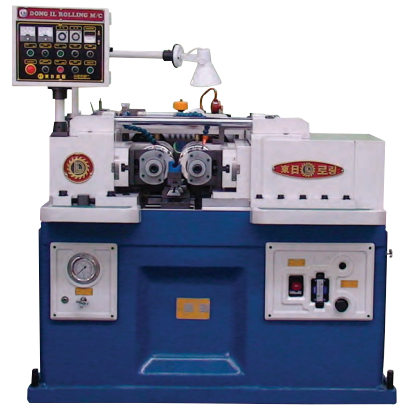

Dong Il 2-die thread rolling machine with a blue base, pressure gauge and control panel above the roll dies

About Dong Il and Cinco

Dongil Rolling Corporation is a machine builder in Busan, South Korea. It describes itself as a specialist in thread rolling machines, rolling machines, rack thread rolling machines and automation machinery.

Cinco Industries is the authorized supplier of Dong Il rolling machines in North America. We supply machines to fastener and metalworking manufacturers, along with dies and tooling for them. Machines are built to order, so lead time depends on the machine and configuration, and we quote it with your application.

Rolling process and workpiece fit

Dong Il builds three kinds of rolling machine for this range. Choose by the part you roll:

  • 2-die rolling machines (DIR series) for general screws, small precise screws, worm screws, serrations, knurling and burnishing, up to a 130 mm outside diameter on the 60-ton model and larger on the 80- and 100-ton models.
  • 3-die rolling machines for hollow and elbow-type parts, and for long hollow parts on the 50-ton model.
  • Counter-flow (DCF series) rolling machines for splined parts and gear-type shafts.

Dong Il rolling machine families

2-die rolling machines

DIR-15 to DIR-100: 15 to 100 tons of rolling force, with automatic configurations.

3-die rolling machines

8, 15 and 50 tons, for hollow and elbow-type parts, in vertical, pushing and horizontal automatic types.

Counter-flow rolling machines

DCF-400 to DCF-1200, for splined parts with rolled diameters from 20 to 50 mm.

Setup, tooling and integration

Dong Il offers its 2-die machines in automatic configurations: a 15-ton auto with 3-axis servo, gantry auto, lift-and-carry gantry auto and through-feed auto. The DCF series lists two-way rolling, an auto-loader and parallel simultaneous rolling as options.

Cinco also supplies dies and tooling for Dong Il machines. Tell us your part and volume and we will help you choose the machine, the tooling and the loading method.

Dong Il rolling machine FAQ

Choose by the part. 2-die machines suit general screws, worm screws, serrations, knurling and burnishing. 3-die machines suit hollow and elbow-type parts, and the 50-ton model handles long hollow parts. Counter-flow machines are for splined parts.

The DIR series runs from 15 to 100 tons of rolling force. Maximum work outside diameter runs from 50 mm on the DIR-15 to 130 mm on the DIR-60, and 200 mm or more on the DIR-80 and DIR-100. Send us your part dimensions and we will match a model.

Yes. The 2-die machines come in automatic configurations: 15-ton auto with 3-axis servo, gantry auto, lift-and-carry gantry auto and through-feed auto. The DCF counter-flow series lists an auto-loader as an option.

Lead time depends on the machine and configuration, and there is no fixed figure. Request a quote with your part details and we will give you lead time with the price.

Yes. Cinco supplies dies and tooling for Dong Il machines. Include your tooling needs when you request a quote.

We do not hold set stock. Inventory varies, and machines can be built to order. Contact us with your application and we will confirm what is available.

Request a thread-rolling application review

Tell us the part material, thread or geometry, dimensions, volume, current process and target rate, and we will help you choose a Dong Il machine.
