Model DIR-15 to DIR-100
Oil-pressure 2-die thread rolling machines from 15 to 100 tons for general screws, worm screws, serrations, knurling and burnishing. Supplied in North America by Cinco Industries.
Eight DIR models cover 15 to 100 tons of rolling force. All are oil-pressure machines with a maximum elongation of 10%.
| Model | Max rolling force (ton) | Max outside diameter (mm) | Max length (mm) | Max pitch (mm) | Main spindle motor (kW) | Weight (kg) |
|---|---|---|---|---|---|---|
| DIR-15 | 15 | 50 | 150 | 4 | 3.7 | 2,200 |
| DIR-20 | 20 | 75 | 150 | 5 | 5.5 | 3,500 |
| DIR-30 | 30 | 75 | 150 | 5 | 11 | 4,000 |
| DIR-40 | 40 | 110 | 200 | 10 | 15 | 4,600 |
| DIR-50 | 50 | 120 | 200 | 10 | 19 | 6,000 |
| DIR-60 | 60 | 130 | 200 | 10 | 22 | 7,500 |
| DIR-80 | 80 | 200 | 250 | 10 | 30 | 10,000 |
| DIR-100 | 100 | 200 to 230 | 250 | 10 | 37.5 | 11,000 |
Figures from Dong Il product data. Confirm the model for your part with Cinco before ordering.
Dong Il DIR 2-die machines from 15 to 100 tons, and automatic loading configurations.

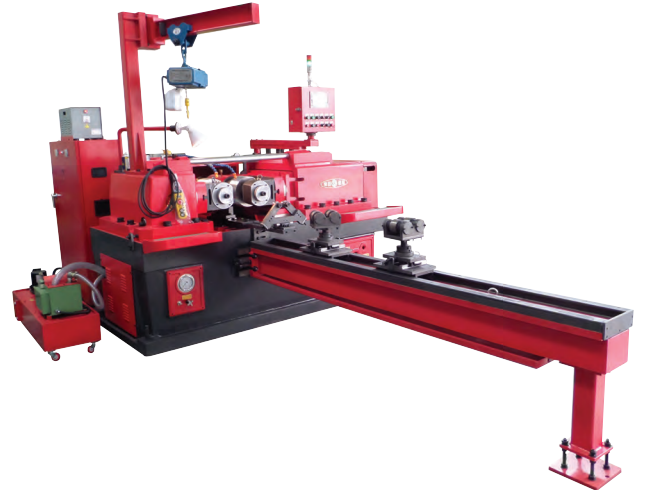

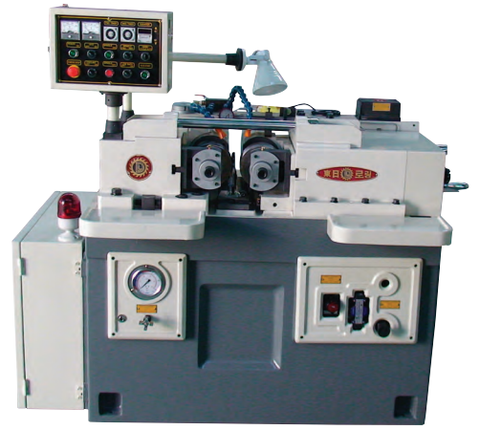

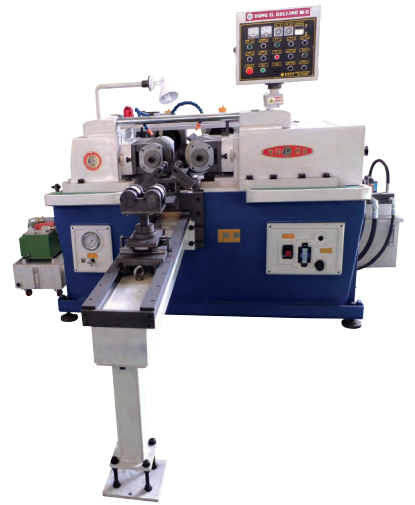

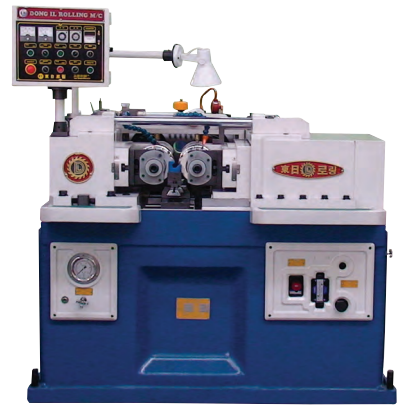

Match the model to the part. The DIR-15 suits general screws, small precise screws, small worm screws and knurling. The DIR-20 and DIR-30 add worm screws, serrations, knurling and burnishing. The DIR-40 and larger models roll worm screws, TM screws, stopper screws and all kinds of screws.

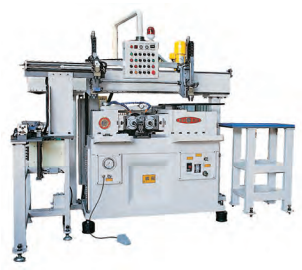

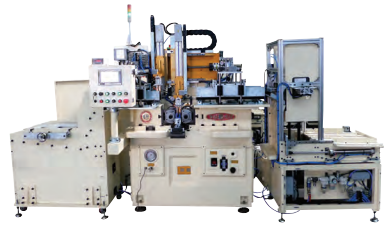

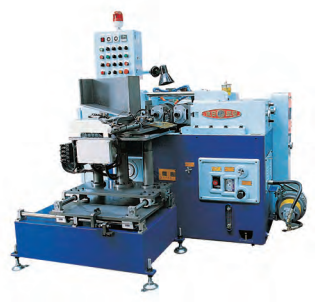

Dong Il offers its 2-die machines in automatic configurations: a 15-ton auto with 3-axis servo, gantry auto, lift-and-carry gantry auto and through-feed auto. Cinco also supplies dies and tooling for these machines. Machines are built to order, and lead time depends on the machine and configuration.
Looking at other Dong Il machines? See all Dong Il thread rolling machines.
Tell us the part material, thread or geometry, dimensions, volume and target rate, and we will help you choose a DIR model.
