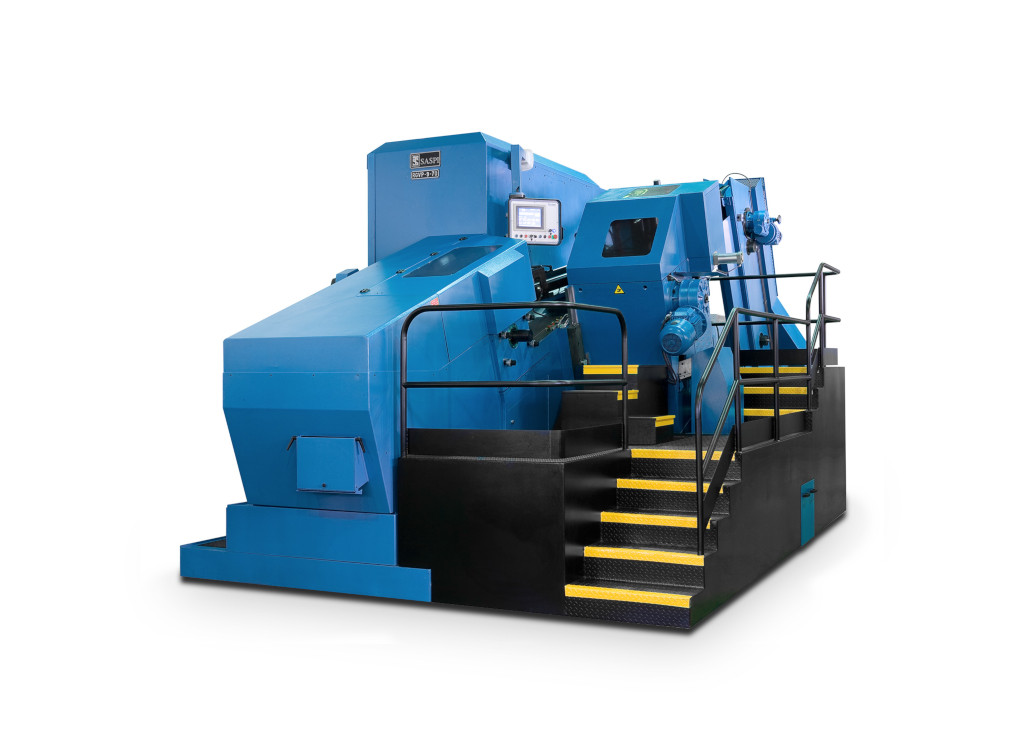

Saspi RGVP Thread Rolling Machines with Pointing Units
Model RGVP Series
A thread rolling machine combined with a Saspi pointing machine, carrying out chamfering and threading or drilling and threading of parts in a single feed.
Saspi
Model RGVP Series
A thread rolling machine combined with a Saspi pointing machine, carrying out chamfering and threading or drilling and threading of parts in a single feed.

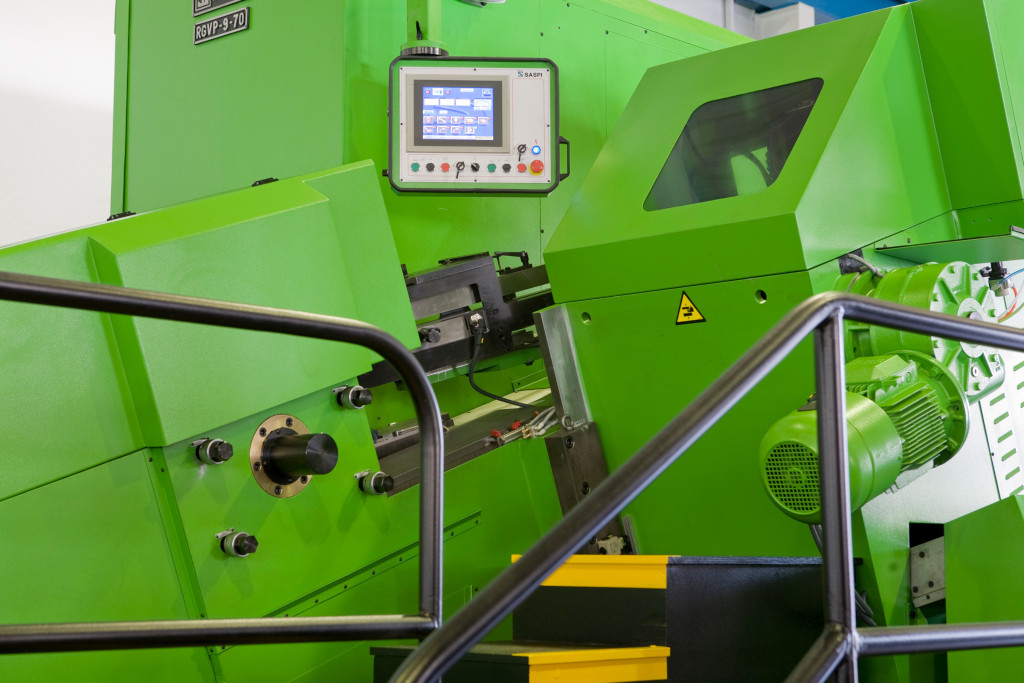

The Saspi RGVP series is a thread rolling machine with a pointing unit. It combines a threading machine with a Saspi pointing machine, so chamfering and threading, or drilling and threading, happen in a single feed.
Saspi rolling machines satisfy the production needs of modern companies, allowing a quick response to the daily changing demands of the market, using the latest technology.
Review the specifications of our flagship models.
| Model | Thread Diameter (mm) | Thread Length (mm) | Waterbury # | Waterbury L1 | Waterbury L2 | Waterbury S | Waterbury H | Power (kW) | Speed (p/min) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| RGVP2 | 2-8 | 6-100 | 10 | 4-1/4" | 5" | 15/16" | 2-1/8" | 14 | 80-250 | 6400 |
| RGVP3 | 4-12 | 10-130 | 20 | 6" | 6-3/4" | 1-3/16" | 3-1/8" | 22 | 60-250 | 7600 |
| RGVP4 | 4-14 | 10-150 | 30 | 7-1/2" | 8-1/2" | 1-7/16" | 4-1/8" | 32 | 50-200 | 9400 |
| RGVP5 | 5-18 | 15-200 | 40 | 9" | 10" | 1-11/16" | 4-1/8" | 40 | 40-160 | 14000 |
| RGVP6 | 8-22 | 20-250 | 50 | 11" | 12" | 1-15/16" | 5-1/8" | 48 | 30-120 | 19500 |
| RGVP8 | 10-26 | 25-250 | 60 | 15" | 16" | 2-3/16" | 6-5/8" | 60 | 25-100 | 30400 |
| RGVP9 | 12-35 | 25-400 | 70 | 19" | 20" | 2-7/16" | 7" | 60 | 25-80 | 36100 |
| RGVP10 | 15-45 | 25-400 | 100 | 26" | 27" | 3" | 7" | 70 | 25-50 | 43000 |
Thread diameter and length are minimum-maximum ranges in mm. Waterbury dimensions are as published by the manufacturer.
Tell us about your parts and we will help you choose an RGVP model.
