Saspi REGV Stud Thread Rolling Machines
Model REGV Series
A rolling machine that incorporates a feeding system for headless parts, so studs are indexed and threaded in one machine.
Saspi
Model REGV Series
A rolling machine that incorporates a feeding system for headless parts, so studs are indexed and threaded in one machine.

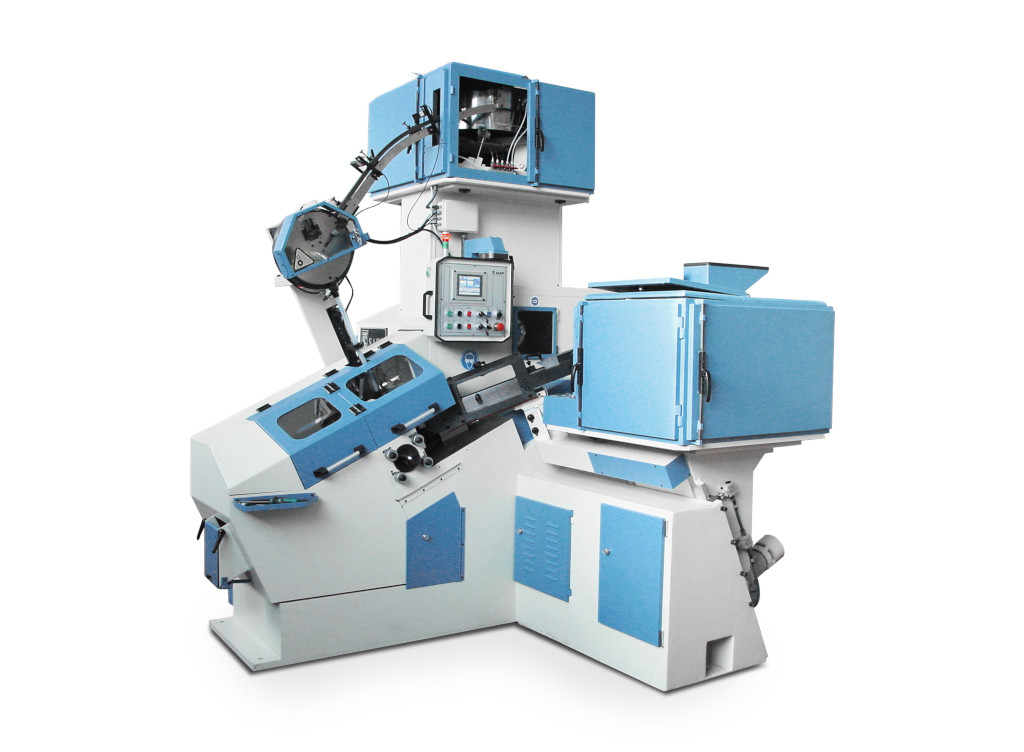

The Saspi REGV series is a stud thread rolling machine with a built-in feeding system for headless parts, so studs are indexed and threaded in one machine.
Saspi rolling machines satisfy the production needs of modern companies, allowing a quick response to the daily changing demands of the market, using the latest technology.
Review the specifications of our flagship models.
| Model | Thread Diameter (mm) | Thread Length (mm) | Waterbury # | Waterbury L1 | Waterbury L2 | Waterbury S | Waterbury H | Power (kW) | Speed (p/min) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| REGV3-20 | 4-12 | 10-120 | 20 | 6" | 6-3/4" | 1-3/16" | 3-1/8" | 25 | 65-120 | 7200 |
| REGV4-30 | 4-14 | 10-120 | 30 | 7-1/2" | 8-1/2" | 1-7/16" | 4-1/8" | 35 | 50-120 | 8200 |
| REGV5-40 | 5-18 | 15-120 | 40 | 9" | 10" | 1-11/16" | 4-1/8" | 42 | 40-120 | 13600 |
Thread diameter and length are minimum-maximum ranges in mm. Waterbury dimensions are as published by the manufacturer.
Choose by the largest diameter you thread. The REGV3-20 handles 4 to 12 mm at 65 to 120 p/min on 25 kW. The REGV4-30 handles 4 to 14 mm at 50 to 120 p/min on 35 kW. The REGV5-40 handles 5 to 18 mm at 40 to 120 p/min on 42 kW. All three take thread lengths up to 120 mm. Machine weight rises from 7,200 kg to 13,600 kg across the range.
Tell us about your parts and we will help you choose an REGV model.
